Matlab 三维图制作教程

Matlab 3D drawing tutorial

分享兴趣，传播快乐，

增长见闻，留下美好！

亲爱的您，这里是LearningYard学苑。

今天小编为大家带来Matlab三维图制作教程，

一起来看看吧！

Share interest, spread happiness,

increase knowledge, and stay beautiful!

Dear you, this is LearningYard Academy.

Today, the editor brings you the Matlab 3D drawing tutorial,

let’s take a look!

ntent="来自LearningYard学苑">

普通三维图制作

Ordinary 3D drawing production

进行设置

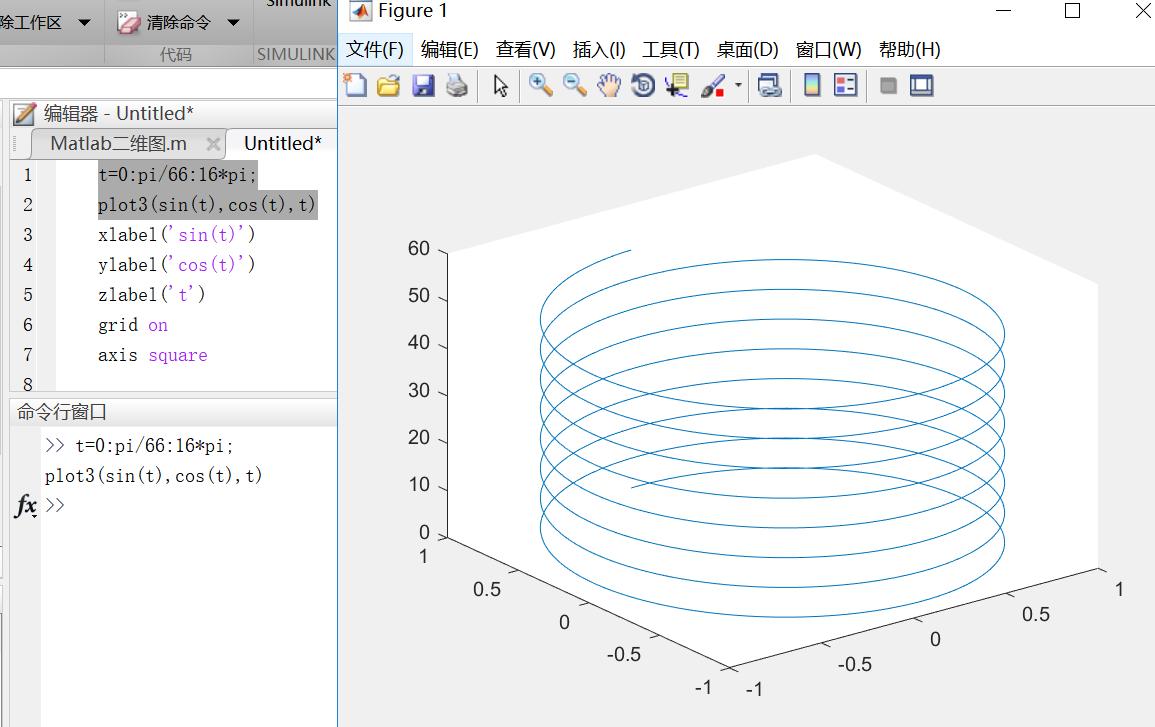

t=0:pi/66:16*pi;

plot3(sin(t),cos(t),t) 表示三维立体指令

Set up

t=0:pi/66:16*pi;

plot3(sin(t),cos(t),t) represents the three-dimensional command

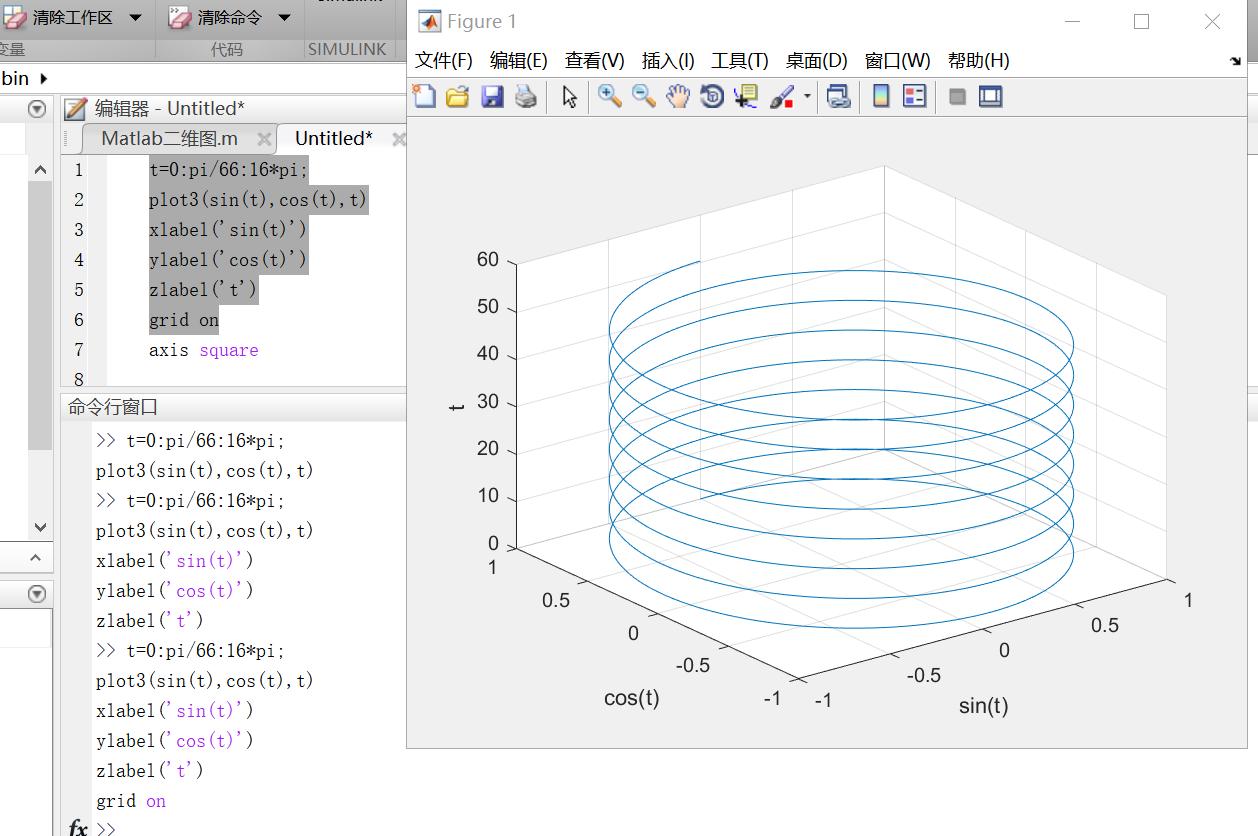

xlabel(&39;sin(t)&39;)

ylabel(&39;cos(t)&39;)

zlabel(&39;t&39;) 表示设置各项标签

grid on 表示在图后面生成网格线

xlabel(&39;sin(t)&39;)

ylabel(&39;cos(t)&39;)

zlabel(&39;t&39;) means to set various labels

grid on means to generate grid lines behind the graph

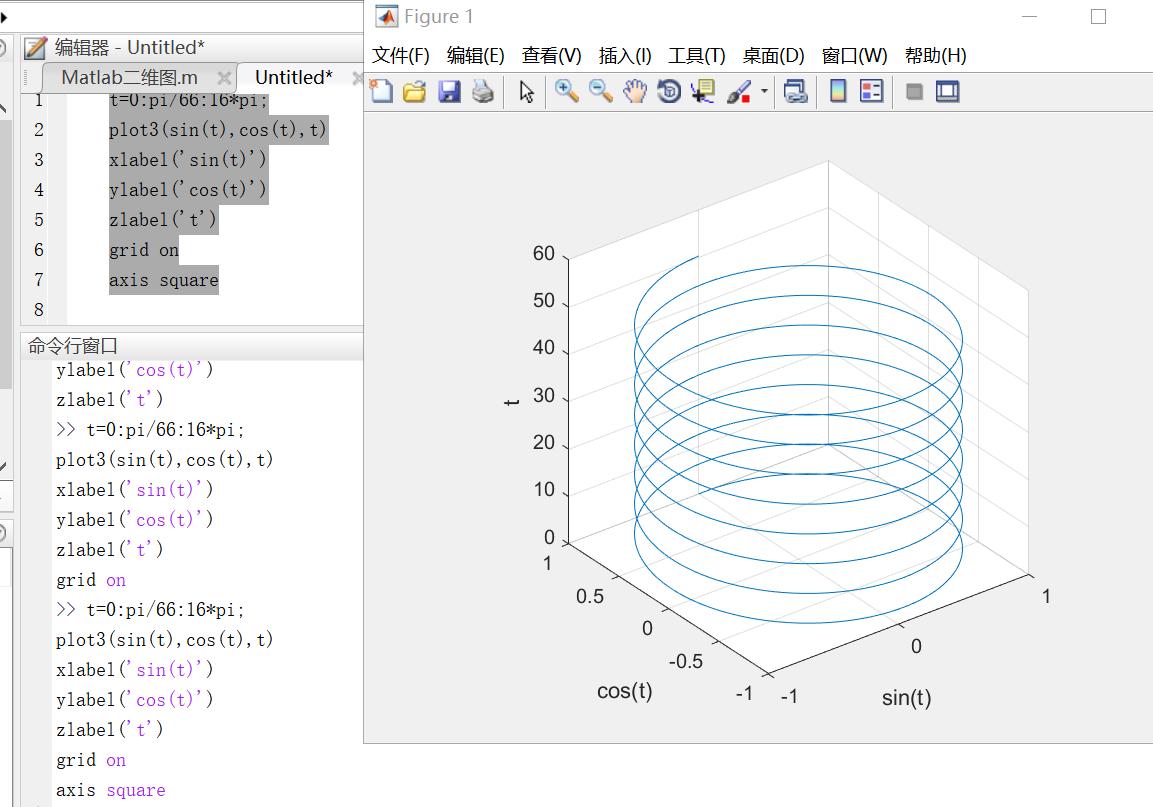

axis square

起到美化限制作用，显得更加立体

axis square

Play a beautifying and restrictive role, appear more three-dimensional

双峰函数绘图制作

Drawing of bimodal function

Matlab还可以制作出很多奇妙的图形，这里再带大家学习一下双峰函数绘图的制作。

Matlab can also produce a lot of wonderful graphics, here we will take you to learn about the production of bimodal function drawing.

进行设置

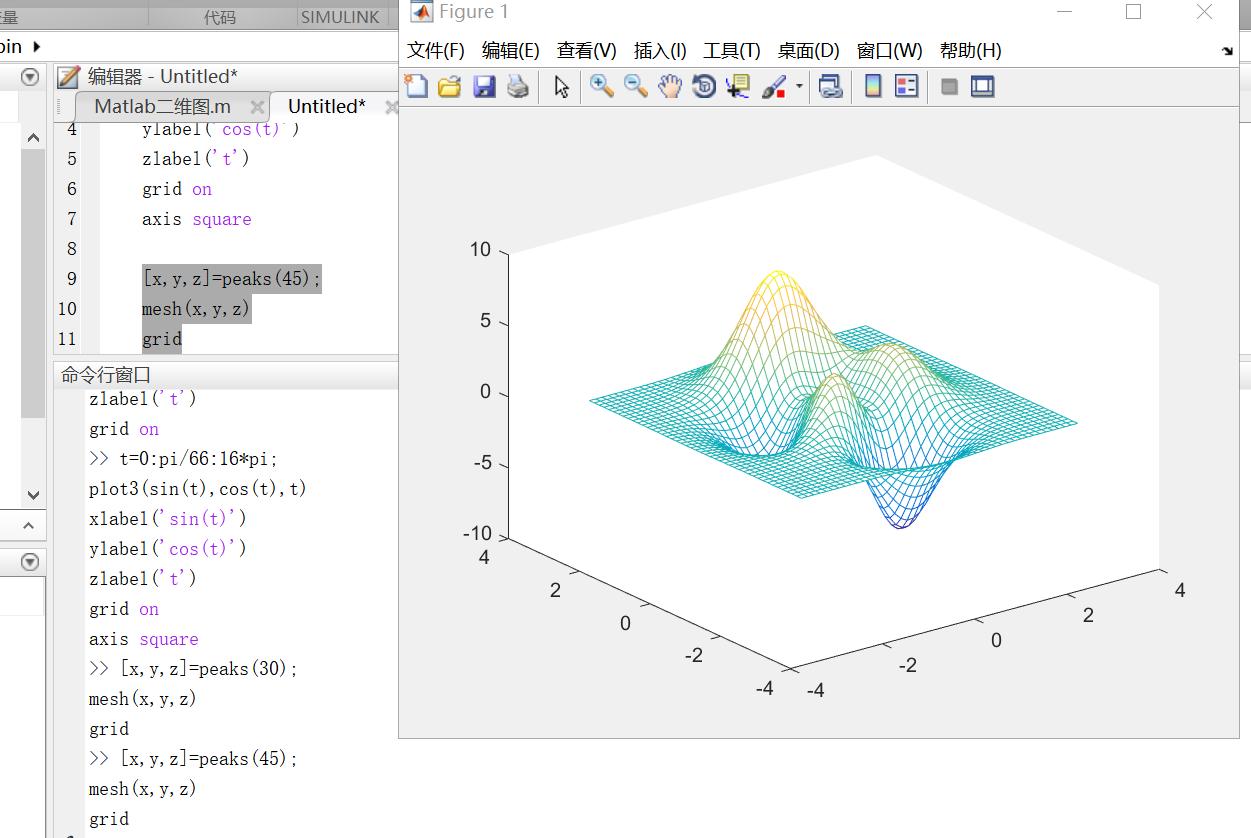

[x,y,z]=peaks(45);

mesh(x,y,z)

grid

Set up

[x,y,z]=peaks(45);

mesh(x,y,z)

grid
